9 Common Types of Door Hinges

A great door often hinges on the right hardware

Man removing door
Photo: Vladdeep / iStock / Getty Images Plus / Getty Images
Man removing door
Photo: Vladdeep / iStock / Getty Images Plus / Getty Images
Get quotes from up to 3 pros!
Enter a zip below and get matched to top-rated pros near you.
Geo Icon

So, you've taken on the task of installing a door hinge and suddenly realized how many types of hinges are at your fingertips. Door hinge types vary just as much as doors themselves, and their three main parts—the hinge leaves, pins, and knuckles—sit differently on each style of door. Choosing the best type of hinge for your door keeps it swinging smoothly for years to come. There are nine main types: butt, spring-loaded, ball-bearing, concealed, pivot, strap, continuous, off-set, and gate hinges.

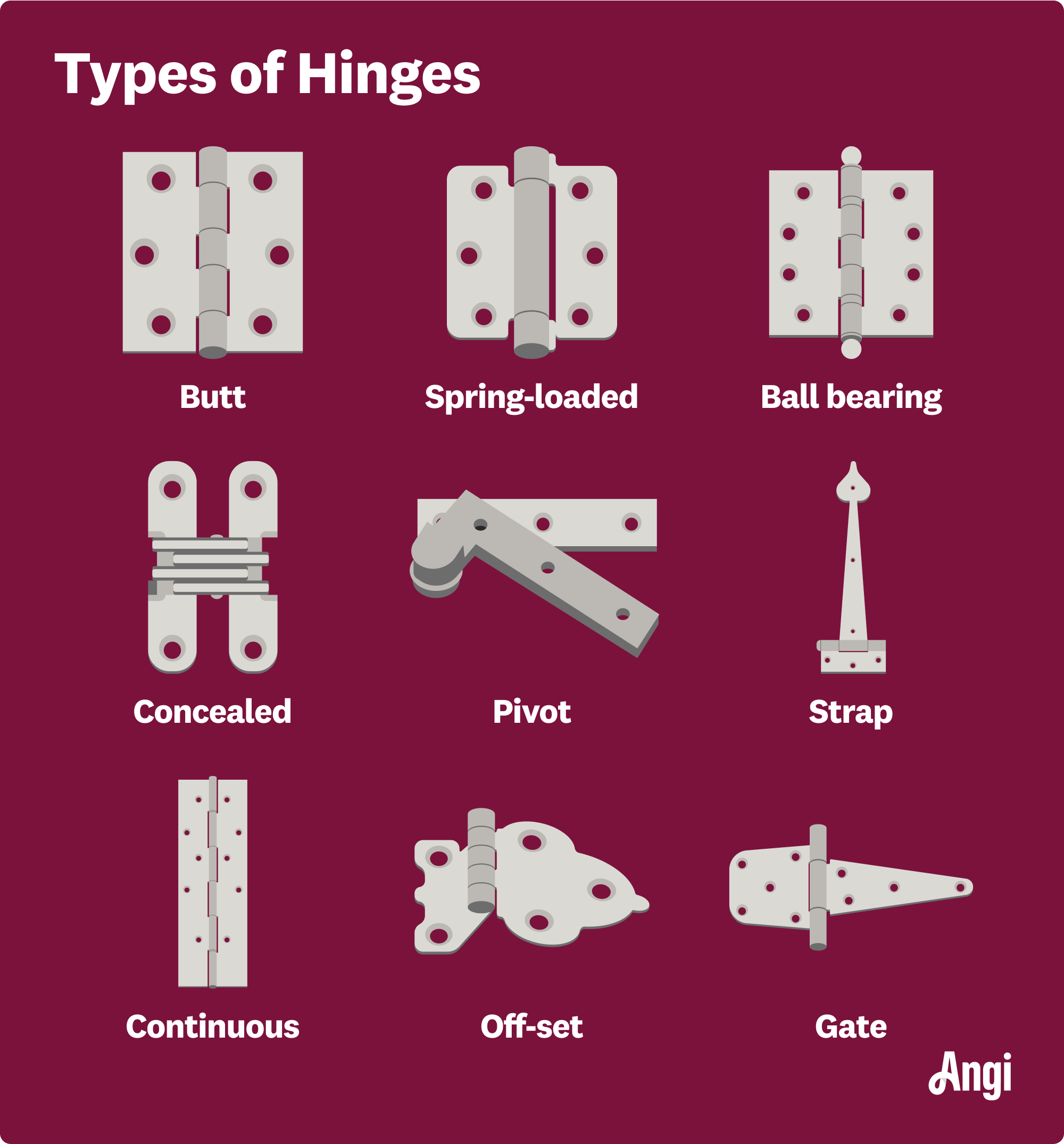

9 types of hinges illustrated and compared, including pivot, strap, and gate hinges

1. Butt Hinge

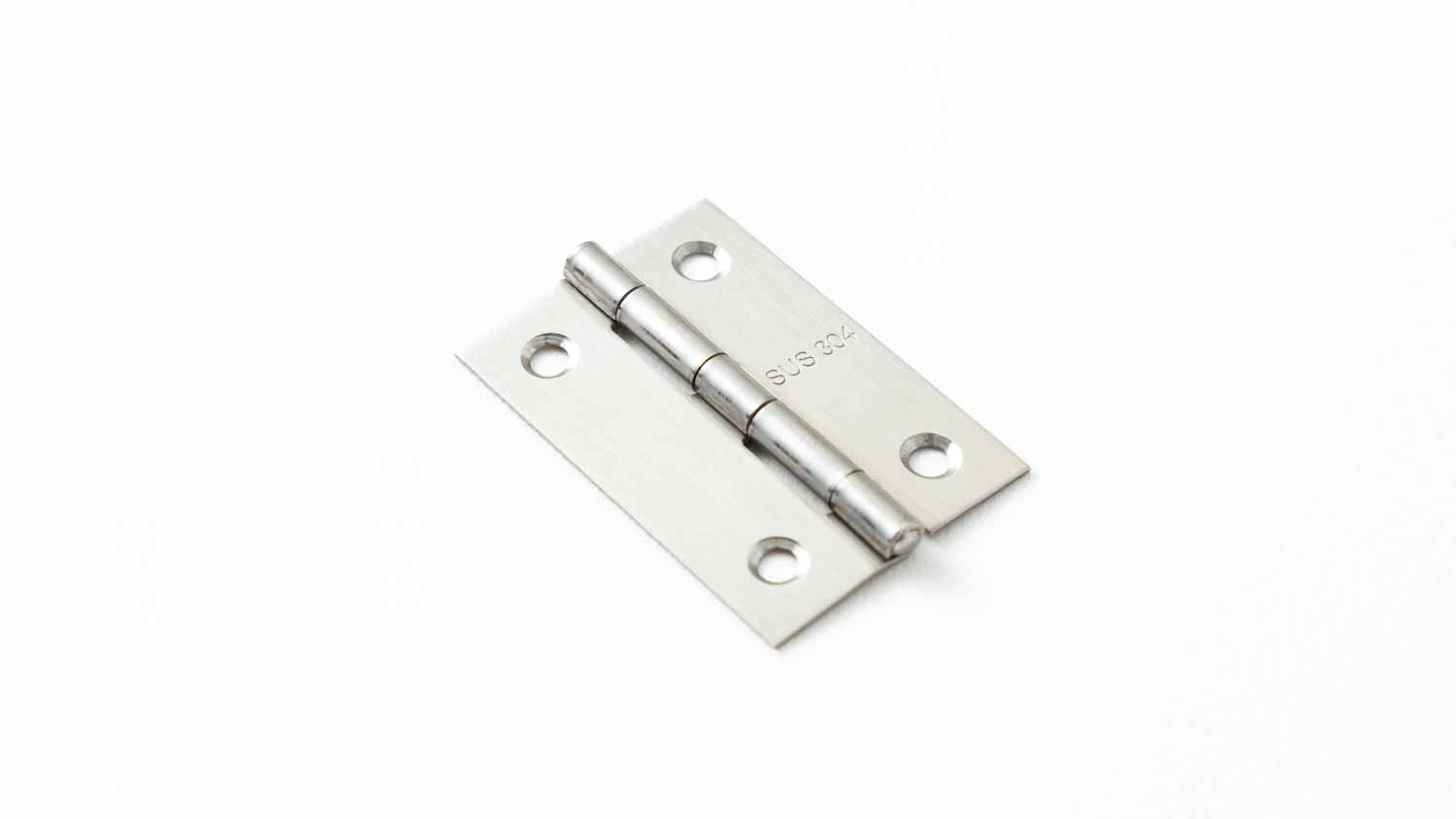

 Door hinge on white background
Photo: years / iStock / Getty Images Plus / Getty Images

A butt hinge is the most popular hinge design and comes in a range of styles that open both to the left and the right. On a basic level, the two leaves—the plates that fan out to either side—of the butt hinge butt right up against one another with the knuckle or barrel at the center.

Butt hinges are often secured within a carved indent in your door, known as a mortise, so the hinge can fit evenly together. They also often include a pin at the center of the knuckle. Removing the door hinge pin is relatively easy, depending on the design.

ProsCons
Low cost for both materials and installationNot always ideal for heavy or high-traffic doorways
Comes in a range of materials, styles, and security levelsDIY installation can be complex depending on the design
Go-to pick for many interior doors, partially solid-core doorsSpecialized styles can be more expensive

Best For: Lightweight interior doors

2. Spring-Loaded Hinge

Spring-loaded hinges are a type of butt hinge that includes a spring to ensure the door closes on its own. These hinges come in a range of sizes, tension levels, and materials, making them ideal for everything from heavy exterior doors to lightweight screen doors. The cost to install a new front door, for example, will particularly come down to the type and number of spring-loaded hinges needed to keep the door safely closing behind you.

ProsCons
Increase ease of use by closing automatically behind youMay not fit in small spaces due to large knuckle or barrel
Many low-cost options for small doors on gatesSome spring butt-hinge varieties are not strong enough for heavy doors
Come in a range of sizes for a variety of usesMay require repairs over time as the spring breaks down

Best For: Self-closing doors, including screen, porch, and pantry doors

3. Ball-Bearing Hinge

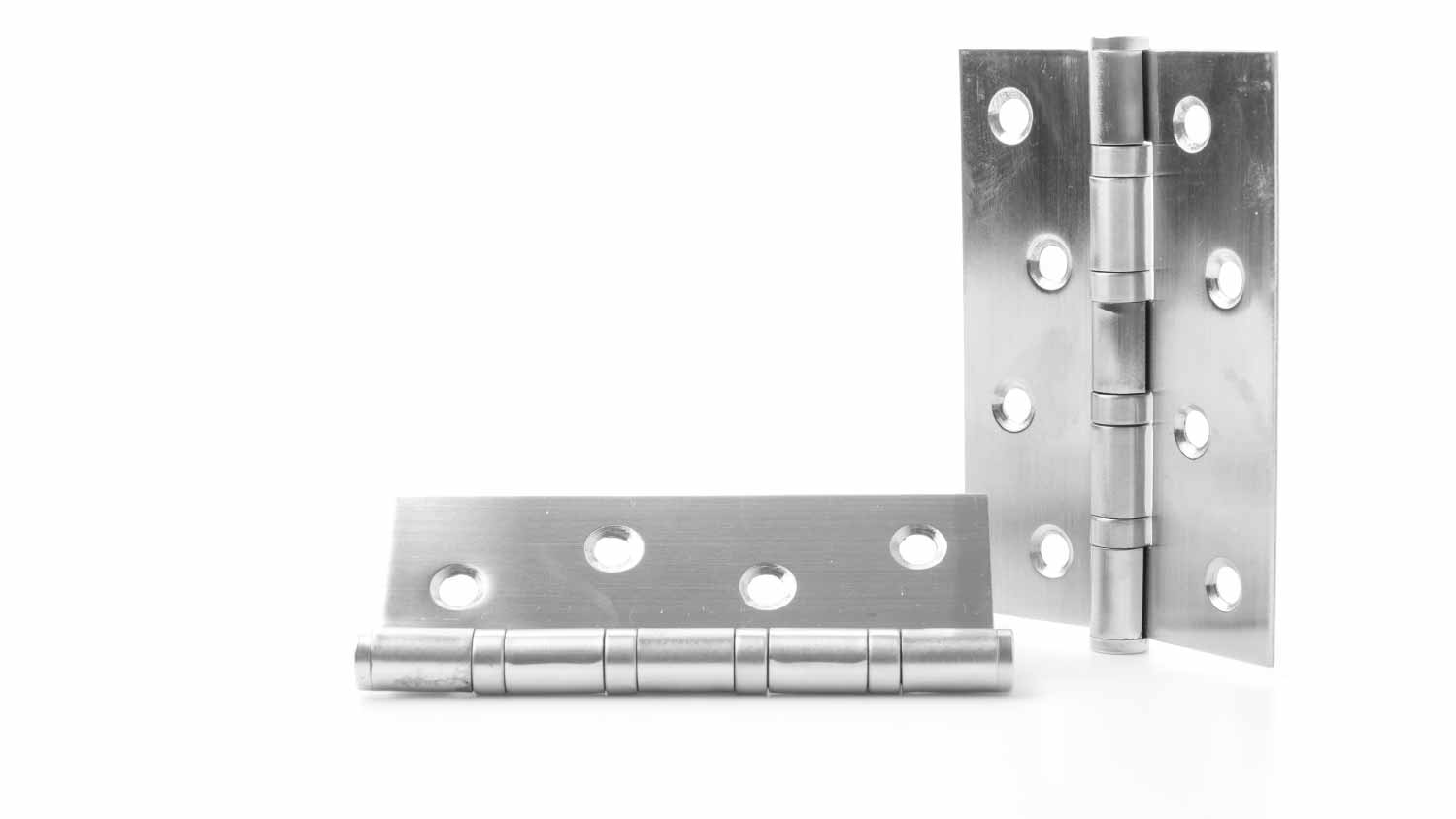

Ball-Bearing Hinge
Photo: Dennis Donohue / Adobe Stock

Ball-bearing hinges are the go-to pick for high-traffic doors in your home. The ball bearings between the knuckles of these hinges allow it to carry a higher vertical load than other butt hinges. That being said, they're not always durable enough for large exterior doors.

Ball-bearing hinges can be a great fix for squeaky doors, but they require a design that can handle more weight over time without letting out that awful squeal.

ProsCons
In many cases, it is easy to remove the pin from a ball-bearing hingeHeavier doors may require three hinges to bear the weight of the traffic
Ideal for some heavy entryway doors that require more supportCost more than a regular butt hinge
Come in a range of materials and stylesMay require oil over time to reduce friction from extra parts

Best For: Interior doors with heavy traffic, such as pantry doors and closets

4. Concealed Hinge

Living up to their name, concealed hinges are tucked within the structure of a door so they’re not visible from the outside. Not only does this look stylish, but it also offers an added level of security for exterior doors. Concealed hinges are a general category that includes various materials, constructions, and prices.

ProsCons
Spring-loaded options allow doors and furniture to close on their ownOften costs more than traditional butt hinges
Offer a streamlined look for specialty doorsDoes not fit comfortably in all door spaces
Can increase the security of a door or gateComplex to install and may require a customized design

Best For: Doors that require extra security

5. Pivot Hinge

Pivot hinges include two knife-like leaves that fold together and attach at several points of a door for extra support. In many cases, they also allow the door to swing in both directions, similar to saloon doors in a restaurant or between a kitchen and dining room. Due to their shape, this hinge type is also known as a knife hinge. Pivot hinges often sit at the two ends and the center of a door or a furniture lid for extra support.

ProsCons
Allows doors to swing in both directions with easeNot ideal for exterior doors due to corrosion from large exposed hinge leaves
Stylish options for heavy interior doorsCosts more to purchase and install
Carries higher vertical and horizontal load due to elongated shape and placement Requires multiple hinges for full support

Best For: Lightweight doors that require flexibility in both directions

6. Strap Hinge

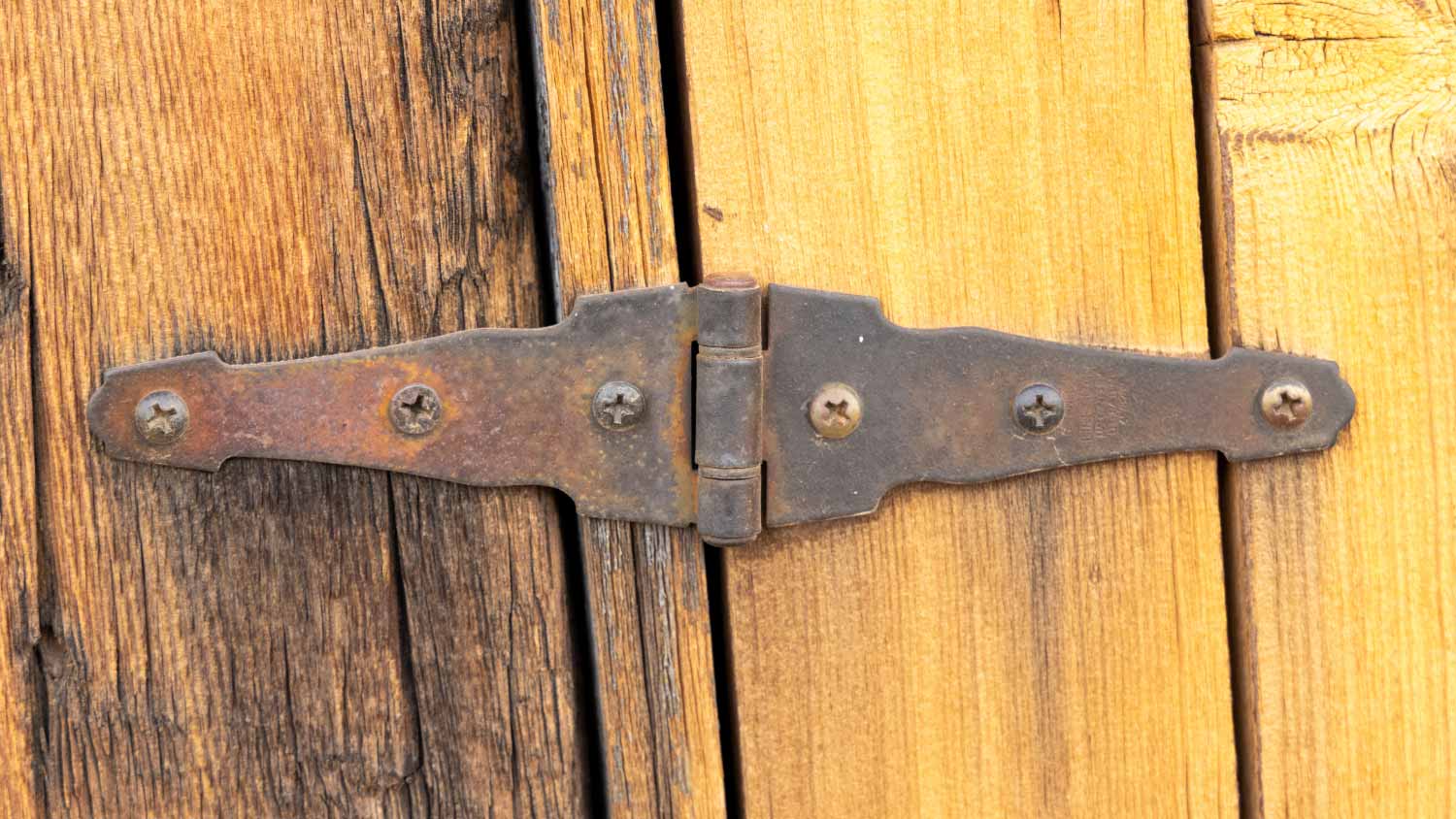

Old Strap Hinge
Photo: Martin Wahlborg / E+ / Getty Images

While strap hinges look like pivot hinges, they’re more decorative. Strap hinges extend out to either side, often in an ornate pattern. They’re ideal for lightweight doors that are self-closing, such as gates and barn doors. You can also use them on interior doors that could use the extra touch of style, such as pantry doors.

ProsCons
Come in many materials, shapes, and colorsNot ideal for heavy and high-traffic doors
Range in price and ease of installationDoes not offer strong security
Often come with a self-closing springCan corrode over time when placed in outdoor areas

Best For: Gate, barn, and ornamental doors that do not require ample security

7. Continuous Hinge

Heavy doors that get ongoing traffic benefit from a continuous hinge that runs the length of your door jamb. It's uncommon to see these hinges on home doors, though you will spot them on commercial doors, pianos, and inside heavy cabinet doors. If you get to know the parts of a door, a continuous hinge would run the length of the hinge jamb—the internal board in the doorframe.

ProsCons
Supportive for very heavy interior and exterior doorsNot necessary for many home doors, except in special cases
Offer extreme security for all types of doorsComplicated to install and not ideal for DIY
Ideal for commercial doorsHigh costs for materials and installation

Best For: Heavy, high-traffic doors that need support through the frame

8. Off-Set Hinge

The basic construction of a door doesn't always encourage easy movement. Off-set hinges allow a door to open at a slightly wider radius due to their unique shape. These hinges are often required for ADA-compliant doors and doors that regularly receive wide deliveries.

Off-set hinges are also helpful in front of a home or apartment to ensure furniture can easily fit through the door. Since these hinges are more complicated to install, it's best to call a door installation team near you when installing them on a large door.

ProsCons
Allow a door to open more widelyMore expensive to install on doors
Come in a variety of ornate designs and materialsWill not fit in all spaces, depending on the placement of the door
Design pairs with both doors and small cabinetryInstallation is more complex and not ideal for DIY

Best For: ADA-compliant doors and doors that require a larger swing radius

9. Gate Hinges

There are different types of gate hinges, and the right one depends on the type of gate you have. The most common type is the barrel hinge, which allows gates to open and close smoothly, but some homeowners choose the strap hinge for its aesthetic appeal.

These hinges are installed with screws and bolts and work best with lightweight gates. If you have a heavy gate or you’re dealing with heavy traffic, consider heavy-duty hinges that can withstand up to 2,000 pounds. If you have a metal gate, weld-on hinges are your only option.

However, if you have a swimming pool, you might need gate hinges that meet the specific safety guidelines required by local ordinances. Check your local laws to ensure your swimming pool gate meets the requirements.

ProsCons
Various types to choose from depending on the gate typeInstalling the wrong hinge could cause the gate to sag
Heavy-duty options are available for heavyweight or heavily used gatesOnly one hinge option works with metal gates
Some don’t require a cutout for the hinge

Best For: Exterior gates on homes, barns, and swimming pools

Hinge Materials

Hinges come in different materials to fit your needs or design style. Choose one that can withstand the height and weight of your door or gate. Steel provides the greatest strength, and bronze offers a unique look. You might need additional hinges for heavy doors. Most hinges are available in various sizes, and can be finished to match the decor.

Common hinge materials include:

  • Stainless steel

  • Aluminum

  • Bronze

  • Pewter

  • Copper

Depending on your desired look, you can have the hinges primed, polished, or plated the hinges.

Frequently Asked Questions

Butt hinges are the most common of all door hinges. They’re frequently used in commercial and residential structures, secure interior and exterior doors, and can be used on cabinetry. They’re inexpensive, simple to install, easy to remove, and available in various materials and styles. They come with two leaves with a knuckle or barrel in the middle.

Continuous hinges are some of the sturdiest hinges available, which makes sense, given that they provide support along the entire side of the door. These hinges are often used for heavy commercial doors, but are impractically expensive and unnecessary for residential use. Among the hinges commonly used in homes, the ball-bearing hinge is the strongest, and it reduces friction to help heavy doors open more smoothly.

Yes, door hinges can sag over time. This usually happens due to things like repeated use, loose screws, worn hinge pins, or the door's weight pulling on the frame. When hinges sag, you'll often notice the door sticking, dragging, or not latching properly. Tightening the screws or replacing worn parts can usually help to realign the door.
