How to Fix a Short Circuit in Your Home

If your devices have suddenly shut down and your circuit breaker keeps tripping, you’re likely dealing with a short circuit. You can learn how to fix a short circuit, but it’s best to hire a professional electrician near you for any type of electrical fix to prevent injury or damage.

You should take this electrical problem seriously, as short circuits can cause injury or even death. While it’s always best to hire an electrician, there may be steps you can take to find and fix a short circuit. Here’s how to fix a short circuit.

What Is a Short Circuit?

A short circuit occurs when an electric current flows through a shorter, unintended path with little or no electrical resistance instead of following its intended path. Because electricity seeks the shortest, easiest path of resistance, the electrical current will take that shortcut if faulty wires create a short circuit pathway.

In theory, this may not seem like a problem, but short circuits left unresolved are very dangerous. It can cause an electrical shock and other types of electrical emergencies. If you suspect you have a short circuit somewhere in your home, you should fix it immediately.

How to Fix a Short Circuit

Follow these steps to find a short circuit and fix it. Remember that it’s best to hire a local electrician to repair this type of issue.

1. Identify the Tripped Breaker and Isolate the Circuit

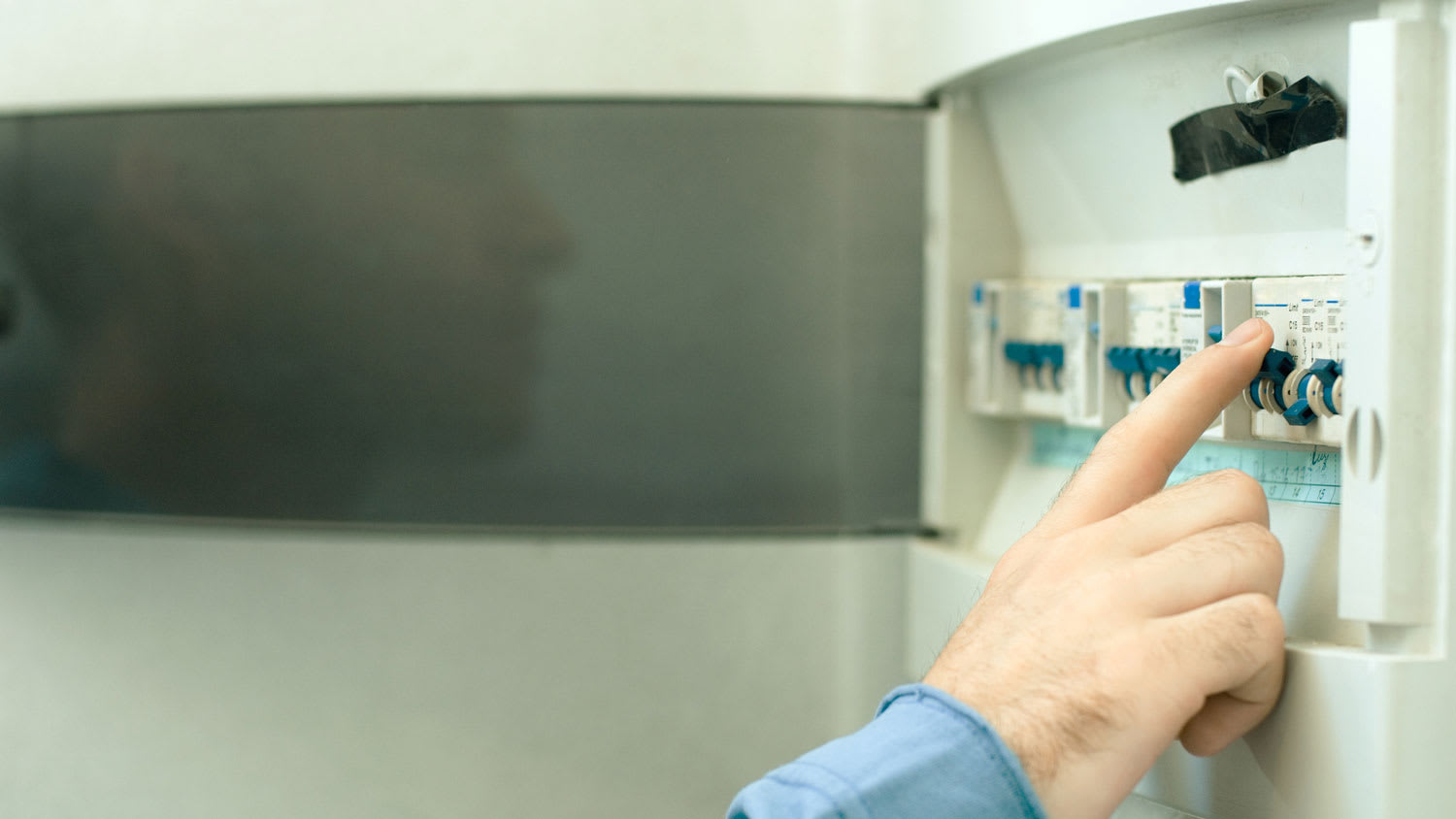

Carefully inspect the breaker panel to determine if the circuit breaker has tripped. If a breaker is switched off, this sign is a good indication that the circuit is tripped. You’ll want to make sure that you’re only working with the circuit in question.

2. Turn the Circuit Breaker Off

In order to identify and fix the short circuit safely, ensure the circuit breaker is turned off. Complete this step by flipping the switch to the “off” position.

3. Identify and Inspect Devices on the Circuit

Once you isolate the circuit, identify which devices are on the circuit. These devices can include appliances, outlets, lights, and more. Inspect each device and look for any signs of damage. Unplug each device and turn on the circuit breaker. By the process of elimination, you should be able to find which appliance is tripping the breaker.

4. Check Wires and Cables

You’ll also want to check the wires inside and between devices. You can inspect electrical and junction boxes, light fixtures, and inside the walls and attic to detect any damaged wires.

5. Buy a New Wire

Once you’ve found the short circuit, you must buy a new wire to replace the faulty one. Make sure the new wire is the same length and type of electrical wire as the one you’re replacing.

6. Remove Insulation and Solder

Next, you’ll need to remove a small amount of insulation from the ends of the wire, exposing the wire enough where it can attach to the current wire’s contact points. Then, use a soldering gun to put solder onto the contact points. Solder the wires together to attach them. Remember that this part of the process is dangerous and should be left to a professional.

7. Turn the Circuit Breaker Back On

Lastly, put the wires back into the system to test whether the short circuit is fixed. You can do so by turning the circuit breaker back on and seeing if the circuit breaker trips. If the circuit breaker doesn’t trip, you’ve successfully fixed the short circuit.

How to Prevent a Short Circuit

Short circuits can create significant problems and put your household in danger. Consider taking these preventative measures to reduce the likelihood of a short circuit.

• Get regular electrical maintenance: Faulty and old wires cause short circuits. By keeping up with annual maintenance, you can catch such problems early.

• Use less electricity during storms: Since lightning can cause short circuits, you’ll want to limit the number of appliances you use during storms.

• Install protective equipment: By having protective equipment such as a circuit breaker, and GFCI and AFCI devices, you can bolster the safety of your electrical system.

• Get a routine professional inspection. It’s highly recommended that homeowners get an electrical inspection every three to five years, or every two to three years if your home is over 25 years old. An electrical inspection can ensure that your electrical setups are safe and code-compliant.

• Regularly inspect your electrical system. Occasionally check your electrical outlets and appliances for any signs of trouble. For example, if your outlets are producing sparks or a burning smell, it’s time to bring in professional help.

Common Electrical Panel Projects and When to Upgrade Service

According to data from Angi customers, most wiring and panel projects (65.7%) involve upgrades to existing service. Upgrading service can be helpful if you’ve recently installed several new appliances, need an electric vehicle charger, or are constantly experiencing breaker trips. On the other hand, 34.3% of people need general electrical repairs, such as fixing blown fuses and flickering lights. If any of this sounds familiar, contact an electrician for assistance.

DIY vs. Hiring a Pro

Completing any type of electrical work requires a specific skill set, knowledge, and training—and fixing a short circuit is no exception. If you don’t have extensive knowledge or experience with short circuits, it’s always best to hire a licensed electrician for this task.

The cost to hire an electrician will vary based on the extent of your electrical issues, but most pros charge $50 to $100 per hour. While hiring a qualified electrician requires spending more to repair a short circuit, the peace of mind you’ll get from knowing the job was done safely and correctly is priceless.
