Fire Alarm Installation Checklist for Hard-Wired or Battery-Operated Models

Installing smoke detectors is something you want to get right the first time. Proper installation gives you confidence knowing you're protected in an emergency. This fire alarm installation checklist takes you from preparation through post-installation tests and checks.

Fire Alarm Installation Location Checklist

Download Checklist Here

Before you get to supplies, spend some time selecting the appropriate alarm placement. If you’re replacing an alarm, simply install it in the previous alarm’s location. However, if you’re installing in a newly finished location, the National Fire Protection Association has placement recommendations that include:

• In all bedrooms

• Outside sleeping areas

• In the hallway of each floor

• In the basement, on the ceiling at the bottom of the stairs to the upper level

• In the attic

• In the garage

• At least 10 feet from the stove or oven in the kitchen

Fire Alarm Installation Supplies Checklist

It doesn’t take a long list of supplies to install a fire alarm. However, gathering them ahead of time can help the project move faster.

• Pencil

• Wirecutter/wire stripper (optional)

• Voltage tester

• Drill

• Drill bit

• Phillips screwdriver

• Hammer

• Wire connectors (optional)

• Plastic wall anchors

• Batteries

• Smoke detector

• Ladder

Pre-Fire Alarm Installation Checklist

Before you unbox a new smoke detector, you’ll need to ensure you follow local laws and codes. Skipping these steps can lead to higher insurance premiums or costly penalties.

• Familiarize yourself with local fire codes, noting the types of systems and smoke/carbon monoxide detectors allowed, testing requirements, and installation guidelines.

• Walk through the space to identify the best locations for smoke detectors, including in all bedrooms, outside sleeping areas, and in the basement.

• Create a map of the space and clearly identify smoke detector locations.

• Identify the best placement for each smoke detector location, such as mounting high on a ceiling or wall, at least 10 feet from cooking appliances, and away from windows and doors, which can interfere with detection.

• Do not install smoke detectors in bathrooms.

• If you’re replacing smoke detectors in an existing system, test all fire alarms in the home. Remember, if one needs replacing, others might as well.

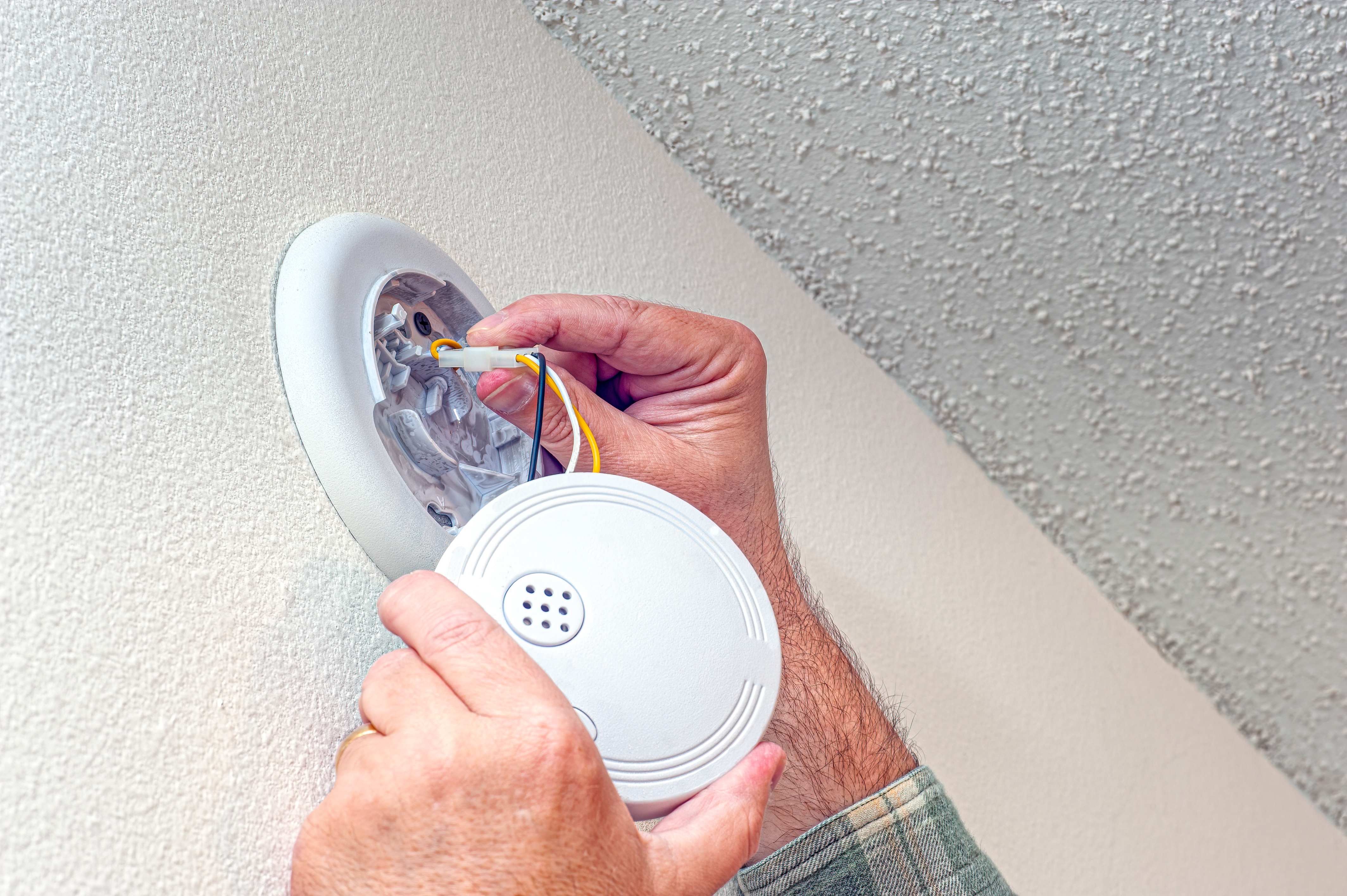

Fire Alarm Installation Checklist: Hard-Wired Models

Hard-wired fire alarms are more complicated than battery-powered ones because their location is fixed, and they have to tie directly into the existing system. Unless you have electrical experience, it’s best to have an electrician or local home security system professional do the job.

• Read the smoke detector’s manual, looking for instructions specific to the model.

• Turn off the power to the currently installed smoke detector.

• Remove the detector from the bracket and disconnect the wiring.

• Connect the new smoke detector to the existing wiring.

• Install the new model into the mounting bracket. If it’s not compatible, you’ll need to install a new mounting bracket.

• Turn the power back on.

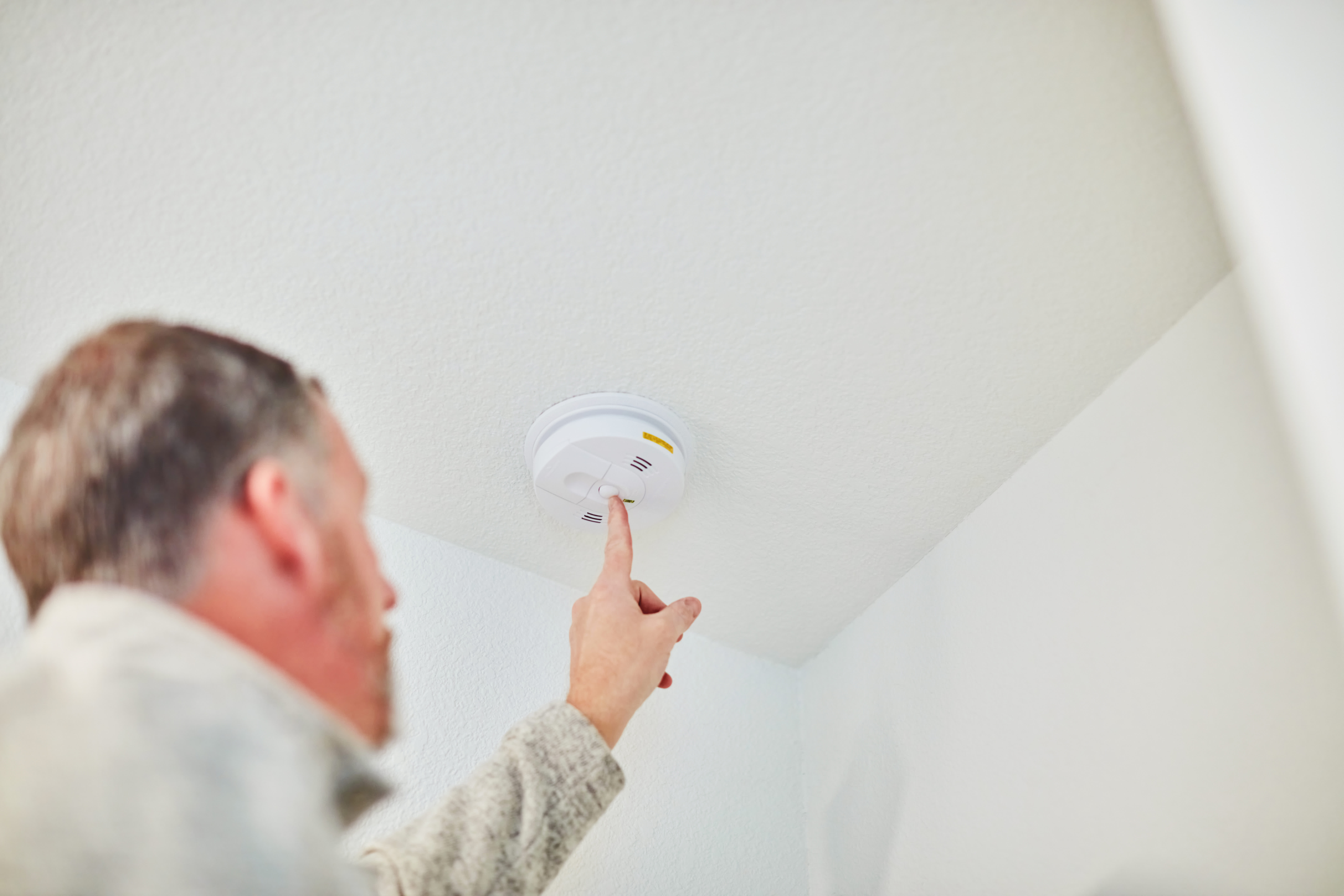

• Test the smoke detector by pressing the “Test” button.

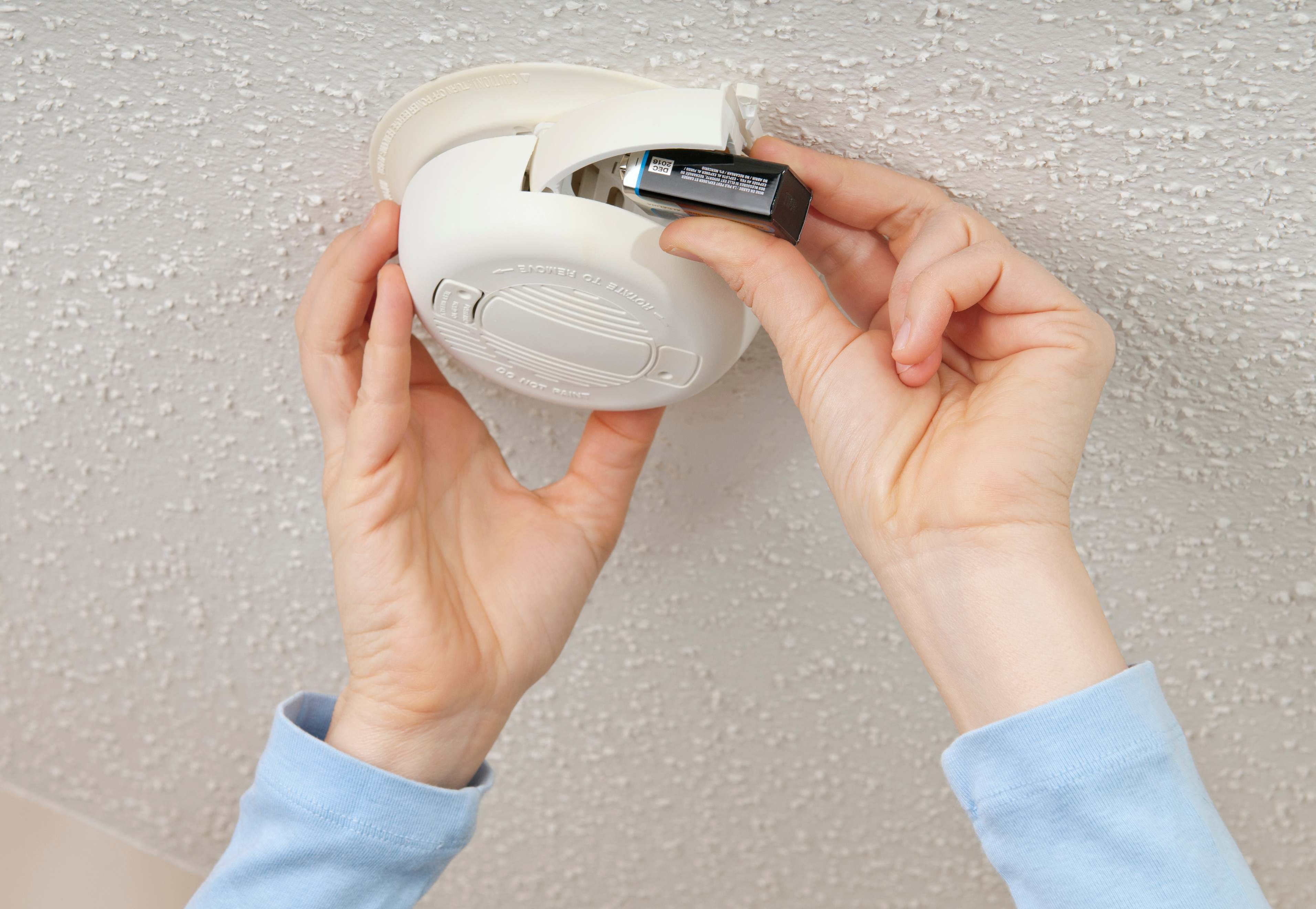

Fire Alarm Installation Checklist for Battery-Powered Models

Installation for battery-powered models is similar, but these models are much more DIY-friendly since you’re not dealing with electricity.

• Read through the smoke detector’s manual, looking for instructions specific to the model.

• Hold the mounting bracket at the installation site and mark the location for anchors and screws in pencil.

• Drill holes at the installation points.

• Install wall anchors if needed.

• Attach the mounting bracket with the included screws and a drill or screwdriver.

• Install the batteries in the smoke detector.

• Slide the smoke detector into the mounting bracket.

• Hold the “Test” button to test the detector.

Post-Installation Checklist

Follow these maintenance tasks to ensure your smoke detectors are working properly:

• Test the alarm again a few minutes after installation.

• Write the installation date on the detector’s back. Most fire alarms should be replaced every 10 years, and this allows you to monitor the timeline.

• Test the alarm every month and vacuum or dust it to remove debris.

• Replace batteries annually.

How Much Does It Cost to Hire an Electrician or Handyperson?

Several pros can install fire alarms, including an electrician, fire alarm technician, or a handyperson. Electricians cost $50 to $100 per hour, but you only need to hire this specialized pro to replace or install a hard-wire system.

A handyperson can often install battery-powered smoke detectors, though their prices can be similar to those of an electrician at $50 to $150 per hour, depending on the job. It’s also important to note that many firefighters will install battery-powered fire alarms for free.

DIY vs. Hiring a Pro

Homeowners can install a battery-powered fire alarm with simple tools, a ladder, and basic DIY experience. Smoke detectors can cost anywhere from $5 for a basic ionization smoke detector to over $150 for a smart model. Fire alarm installation costs when you work with a pro average $115.

When replacing a model on a wired system or installing a wired system, you should work with an electrician or specialized technician to ensure safe and successful installation. Wired fire alarms have to be installed based on the location of the electrical wiring, and they can also integrate your alarms with a home security system, but you won’t be able to accomplish this work safely on your own.
