What Is the Proper Distance Between a Toilet and a Vanity or Sink?

Planning your bathroom layout can feel like solving a jigsaw puzzle, especially if you have a small space. With the average bathroom remodel cost clocking in at $12,000, it’s crucial to make the most of the space you have. After all, you want more than just a bathroom you can use—you want a space that’s comfortable. Here’s how the distance between the toilet and the vanity can make all the difference.

Recommended Distance Between a Toilet and Vanity

The ideal distance between a toilet and a vanity depends on the bathroom layout and dimensions. For the most common layout, with a toilet to the side of the vanity, the National Kitchen & Bath Association (NKBA) recommends a minimum of 15 inches from the center of the toilet to the edge of the vanity. This satisfies most building codes but isn’t necessarily the most comfortable setup. Ideally, aim for 18 or more inches between these bathroom must-haves.

The Main Electrical Outlet Types at a Glance

Here are the outlet types you find in most U.S. homes:

• 15-amp, 120-volt (2-prong and 3-prong): The standard household outlet for lamps, TVs, and chargers.

• 20-amp, 125-volt: A higher-power outlet for kitchens, laundry rooms, and workshops.

• 240-volt (20-amp to 50-amp): A large-appliance outlet for dryers, ranges, and EV chargers.

• GFCI: A shock-protection outlet for kitchens, baths, and other wet areas.

• AFCI: A fire-protection outlet for bedrooms and living spaces.

• Tamper-resistant: A child-safe outlet with internal shutters, now standard in new homes.

• Weather-resistant: A corrosion-resistant outlet built for outdoor use.

• Convenience types: Switched, combination, USB, smart, and rotating outlets.

Guidelines for Toilet Placement

The clearance around your toilet is about more than just having room to go. It helps ensure the other elements in your bathroom—like your shower, the door, the bathtub, sinks, and even the toilet paper holder—aren’t obstructed. Accessible bathrooms for older adults will need more space than the recommendation for safe use of a wheelchair, walker, or grab bars, but it depends on the layout.

Keep these guidelines in your bathroom remodel checklist. A bathroom remodeling pro can offer insight into the best configuration for the minimum distances while also meeting the needs of your household.

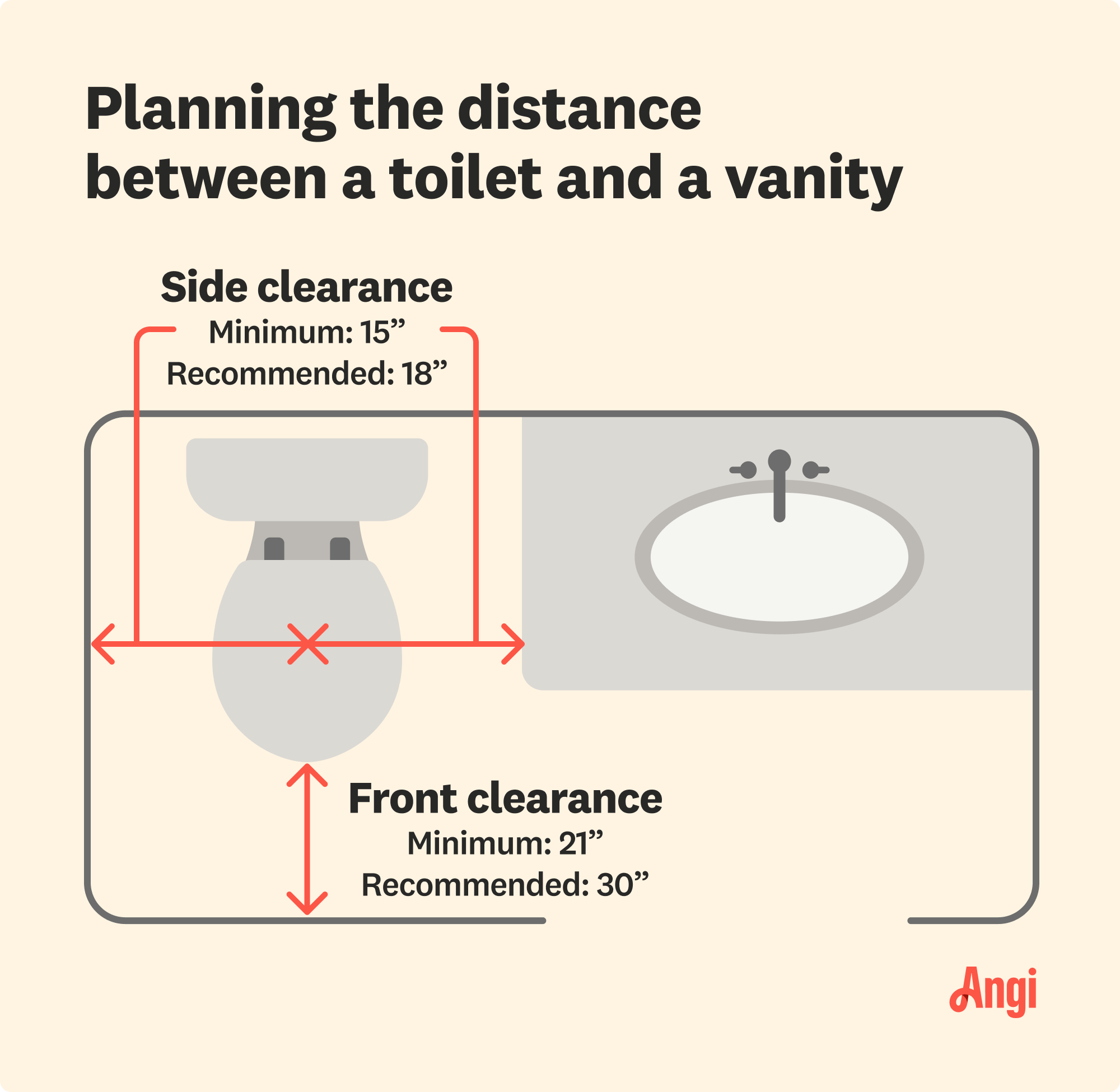

Ideal Toilet Front Clearance

The measurements below are from the front of your toilet. If you can only meet the minimum, try placing your toilet in front of a door instead of a fixture to create more clearance. Keep in mind that moving a toilet will require extra plumbing work and will increase costs.

• Minimum distance: 21 inches

• Recommended distance: 30 inches

Ideal Toilet Side Clearance

The measurements below are for side clearance, and you’ll measure them from the center of your toilet. Regardless of the type of toilet, the toilet’s distance from the wall should be 15 inches at a minimum.

• Minimum distance: 15 inches

• Recommended distance: 18 inches

Guidelines for Sink and Vanity Placement

Different types of bathroom vanities have different space requirements. You won’t have a choice about sink placement if you purchase a vanity with a sink cutout or install a pedestal sink, but it’s a good idea to keep these guidelines in mind if you’re doing a custom bathroom remodel.

Sink Distance From the Wall

Measure sink distance from the center of your sink to the wall. The guidelines are as follows:

• Minimum distance: 15 inches

• Recommended distance: 20 inches

Double Sink Placement

For double vanities, you’ll need enough distance between the sinks that two people can use them simultaneously to brush their teeth or get ready for the day. Measure from the center of one sink to the center of the other.

• Minimum distance: 30 inches

• Recommended distance: 36 inches

Bathroom Counter Front Clearance

You’ll need to space the edge of the countertop far enough away from any obstructions. If your door swings open into your bathroom, don’t forget to include it as an obstruction. Here are some general guidelines, but you’ll need more floor space for an accessible bathroom, including enough room for a wheelchair.

• Minimum distance: 21 inches

• Recommended distance: 30 inches

Considerations for the Distance Between a Toilet and Vanity During Installation

Since this installation involves plumbing, hire a bathroom remodeling pro near you who knows the ins and outs of bathroom layouts and what will work best with the space you have. Nonetheless, there are a few things to consider when planning your bathroom.

Size of Space

Minimum bathroom layout dimensions depend on whether you have a full bathroom, a half bathroom, or a water closet. The smaller your bathroom, the closer you’ll need to stay to the minimum clearance requirements. Certain layouts can help you save space, as can swapping out a tub for a walk-in shower, which is one of the few bathroom features that can increase resale value.

Plumbing

Unless you have the budget to relocate pipes, let the placement of your plumbing determine the placement of your vanity and toilet. You can hire a pro who installs bathroom vanities, but always call a licensed plumber for plumbing work.

Accessibility

If you’re aiming for a universal bathroom design, consider the guidelines from the Americans with Disabilities Act (ADA). Depending on the bathroom layout, you may need as much as 60 inches of clear floor space around your toilet to ensure that people who use wheelchairs or walkers can safely navigate it.

Ventilation

Bathroom ventilation can reduce odors and excessive moisture. Make sure exhaust fans on the ceiling or near the top of the wall are unobstructed. If you have an exhaust fan with a heater, it might be near the floor.

Privacy

Putting a toilet and vanity close together limits privacy. If multiple people will be sharing the bathroom, consider creating a stall or partition. The minimum toilet room dimensions are 30-by-60 inches.
